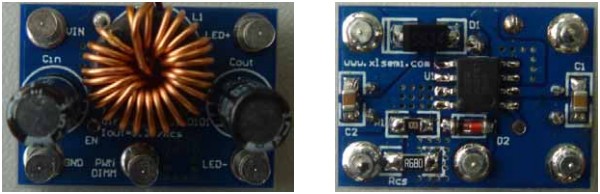

Boost LED constant current driver IC---XL6001 Constant current drive 0～8W |
| Product model | Input voltage | Max. output voltage | Max. switching current | Switching frequency | Constant current setting | Package |
| XL6001 | 3.6V~24V | 5V~32V | 2A | 400KHz | Adj (0.22V) | SOP8 |
XL6001 General Description
The XL6001 regulator is fixed frequency PWM Boost (step-up) LED constant current driver, capable of driving Series 1W LED units with excellent line and load regulation. The regulator is simple to use because it includes internal frequency compensation and a fixed-frequency oscillator so that it requires a minimum number of external components to work. The XL6001 could directly drive 5~8 Series 1W LED units at VIN>12V .
The PWM control circuit is able to adjust the duty ratio linearly from 0 to 90%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.
XL6001 Features
● Wide 3.6V to 24V Input Voltage Rang
● 0.22V Constant Current Sense Voltage
● Directly drive 3~8 Series 1W LED
● Fixed 400KHz Switching Frequency
● Max. 2A Switching Current Capability
● Up to 92% efficiency
● Excellent line and load regulation
● EN PIN TTL shutdown capability
● Internal Optimize Power MOSFET
● Built in LED Open Protection
● Built in Soft-Start Function
● Built in Frequency Compensation
● Built in Thermal Shutdown Function
● Built in Current Limit Function
● Available in SOP8 package
XL6001 Pin Configurations

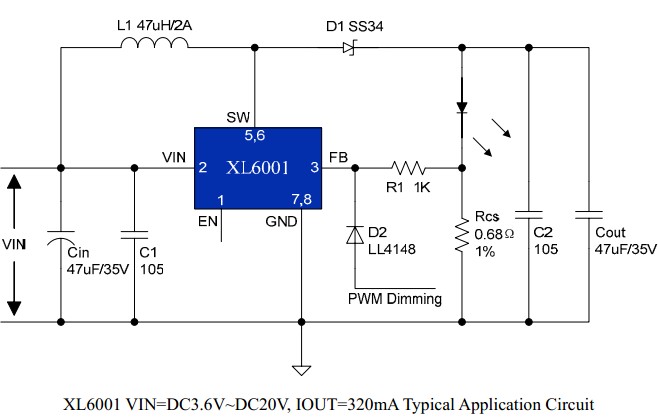

XL6001 Typical Application Circuit

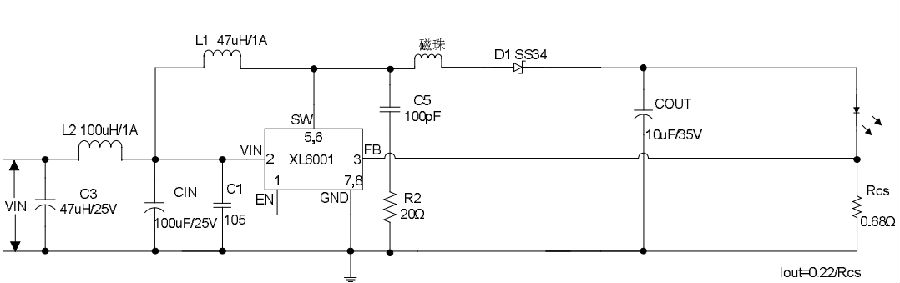

XL6001 EMC certification application reference circuit

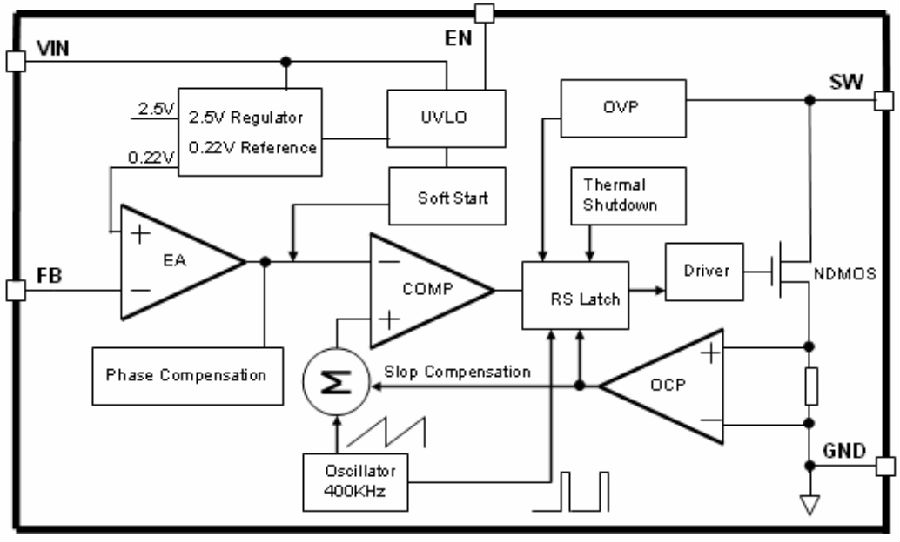

Function Block Diagram of XL6001
XL6001 Pin Description
XL6001 Pin Number | XL6001 Pin Name | XL6001 Description |
1 | EN |
Enable Pin. Drive EN pin low to turn off the device, drive it high to turn it on. Floating is default high. |
2 | VIN |
Supply Voltage Input Pin. XL6001 operates from a 3.6V to 24V DC voltage. Bypass Vin to GND with a suitably large capacitor to eliminate noise on the input. |
3 | FB | Feedback Pin (FB). The feedback threshold voltage is 0.22V.
|
4 | NC | No Connected.
|
5、6 | SW |
Power Switch Output Pin (SW). Output is the switch node that supplies power to the output. |
7、8 | GND | Ground Pin.
|
XL6001 Ordering Information
Order Model | Package | Operating Junction Temperature | Packing Type | Marking ID |
XL6001E1 | SOP8 | -40 oC To 125 oC | Tape and Reel | XL6001E1 |
