80V 1A Switching Current Buck PFM LED Constant Current Driver XL8004E1
|
Product model
| Input Voltage | Max. output voltage
| Max. output current
| Switching frequency
| Feedback voltage
| Package
|
XL8004
| 24V ~ 80V
| 3～14 LED series
| 1A
| PFM
| Adj (0.2V)
| TO252-5L |
General Description of XL8004
The XL8004 is a monolithic high voltage switching regulator with PFM that is specifically designed to operate from a 24V~80V DC supply.
The XL8004 is a high efficiency LED driver switching regulator. The LED string is driven at DC constant current rather than constant voltage, thus providing constant current output and enhanced reliability.
The document describes a high efficiency LED driver designed to drive an LED driver at a current of 300&600mA from an input voltage range of 24 VDC to80 VDC, output support 3~8 series 1/3W LED.
The XL8004 also provides a sophisticated range of protection features including auto-restart for control loop open/short faults and output short-circuit conditions. Accurate hysteretic thermal shutdown ensures safe average PCB temperatures under all cond itions. Design with very low parts count.
Features of XL8004● Wide 24V to 80V Input Voltage Range
● 0.2V current sense voltage reference.
● Directly drive 3~14 series 1W LED.
● Excellent line and load regulation.
● High efficiency up to 96%.
● Internal optimize power HV-MOSFET.
● Built in thermal shutdown function.
● Built in UVLO function.
● Built in current limiting function.
● Built in LED open & short protection.
● Built in soft-start circuit.
● Available in TO252-5L package.
Applications of XL8004
● EBIKE LED Lighting
● LED Lighting & LED LAMP
● General purpose LED lighting

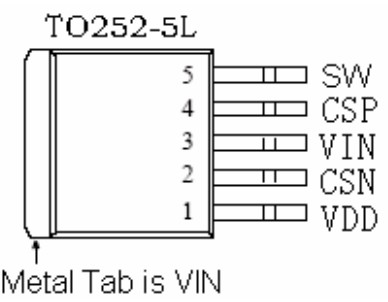

Pin Configurations of XL8004
Pin Description of XL8004
Pin Number
| Pin Name
| Description
|
1
| VDD
| The chip supply voltage.
|
2
| CSN
| Current Sense Negative Terminal. |
3
| VIN
| Input high voltage Pin. (Operation voltage 24V~ 80V)
|
4
| CSP | Current Sense Positive Terminal. |
5
| SW
| Output Switching Pin.
|
Input VIN=24~80V system parameters table of XL8004(Output 3~8 *1W LED)
Input VIN=24~80V system parameters table of XL8004 (Output 3~8 Series *2 Parallel *1W LED)
Typical application circuit (9W ~ 14W)
Input VIN=48~80V system parameters table of XL8004 (Output 9~14 *1W LED)
